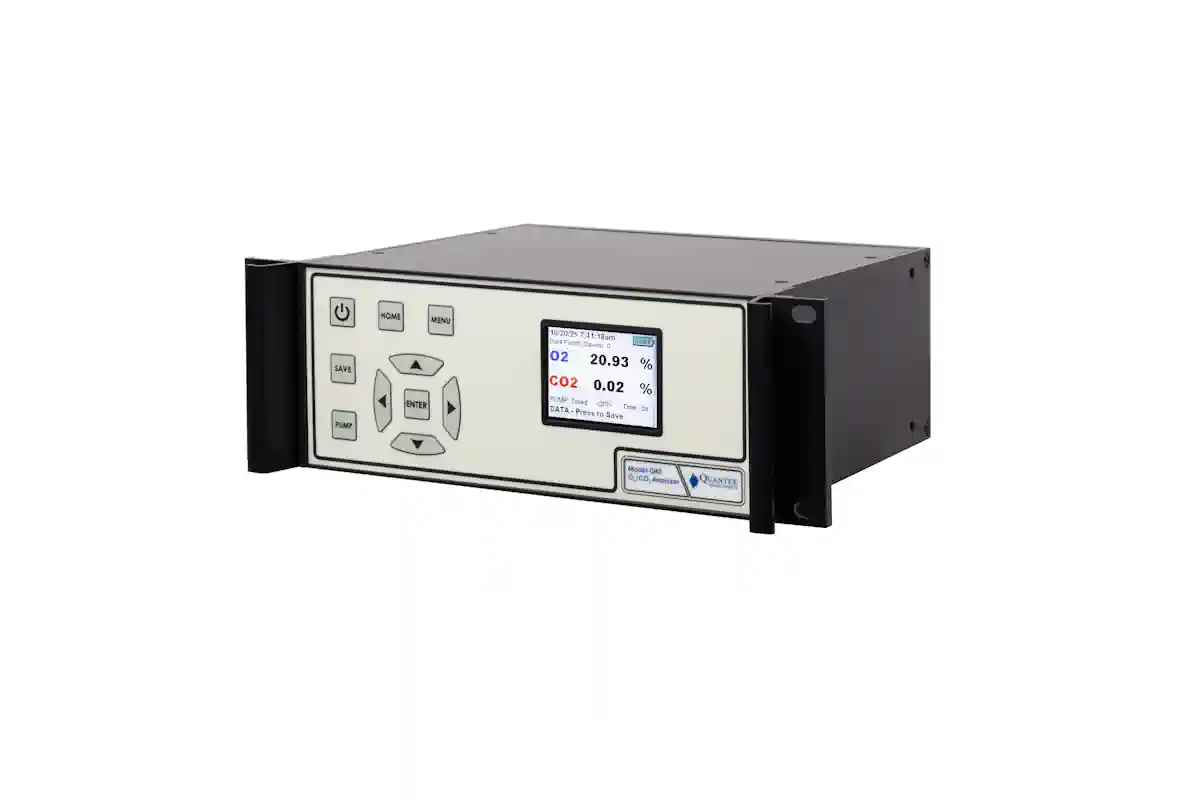

Q42 Rackmount-2U O2 / CO2 Analyzer

The Quantek Model Q42 is our next generation rackmount O2 / CO2 analyzer. Use it for process systems, inline testing, along with many other types of applications.

This microprocessor-controlled instrument features onboard data collection, a TFT full color screen, built in analog output (0-5V), and EasyCal calibration using the touchpad.  Additionally, it can be outfitted with options such as a sample pump, or a 12-hour runtime internal battery.

Readings can be exported to USB thumb drive as CSV file for further processing. The Q42 comes with a power supply, thumb drive, and consumable accessories.

Request A Quote

SKU: Q42 Categories: ,
Lead Time: 3-6 business days

NEXT GENERATION TECHNOLOGY

Introducing the Q42, the next generation of Quantek analyzers. This analyzer utilizes the latest in microprocessor-based sampling, and comes equipped with an advanced TFT display, smart charging, onboard data collection, advanced pump functions, and EasyCal calibration controls.

LONG LIFE, STABLE SENSORS

The Model Q42 incorporates the latest fast response O2 and CO2 sensors, which allows results to be obtained in 15-25 seconds for rapid spot checks. The oxygen sensor is rated for 5 years of life, which is far better than the competition. Other analyzers utilize cheap oxygen sensors which may last 18-24 months.

EASY SAMPLING METHOD

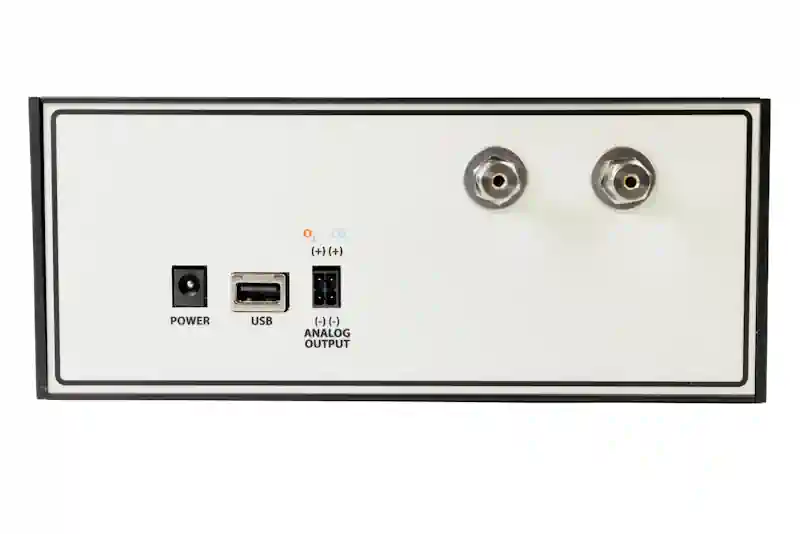

The Q42 series sample inlet and outlet are located on the rear panel for ease of access.  By default, both fittings are 1/8” stainless steel Swagelok.  Other inlet/outlet configurations are available upon request.  Some examples include standard luer fittings, ¼” Swagelok fittings, or a sample probe.  We can recommend or customize fittings to give the most seamless sampling experience for whatever system you may have.

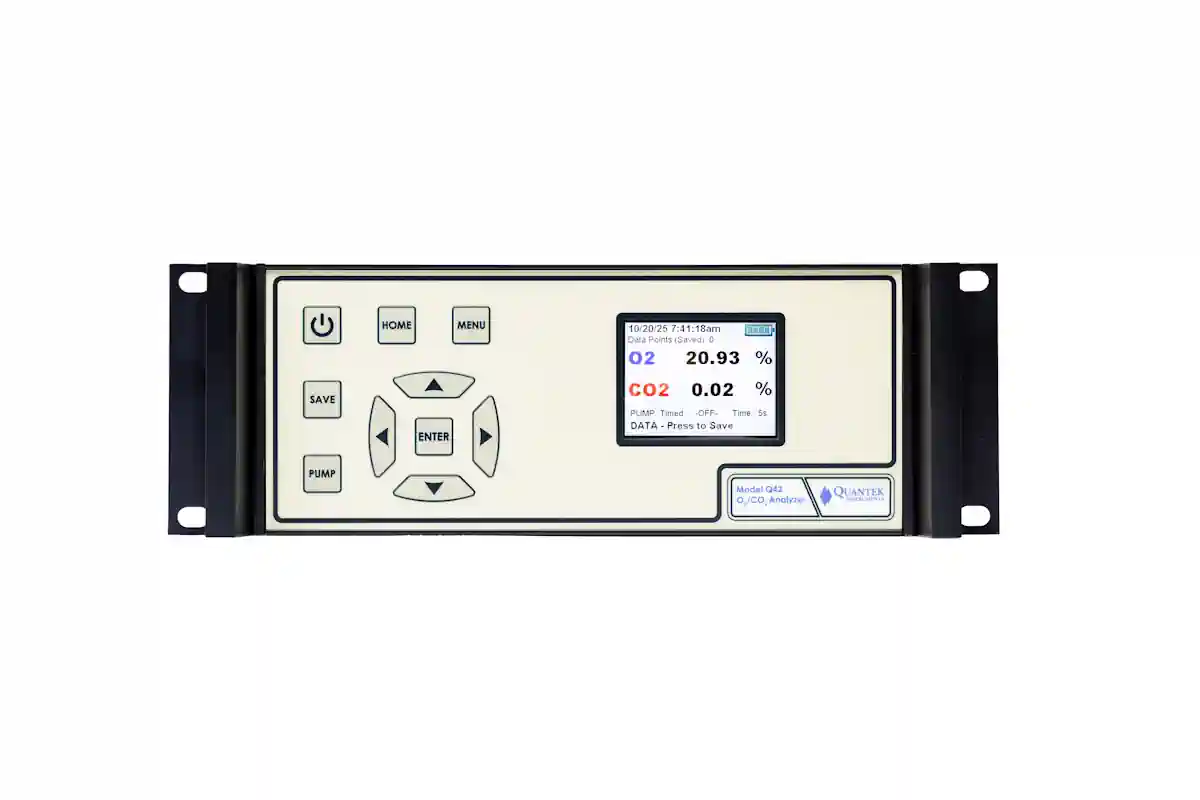

USER FRIENDLY, ACCESSIBLE CONTROLS

Navigate the user-friendly interface, and you can adjust the oxygen calibration, pump time, CO2 calibration, and other parameters on the fly. There’s no need to reboot and no need to warmup – it’s as easy as it gets.

ABOUT THE SENSORS

The infrared CO2 sensor utilizes NDIR technology for maximum stability and has a theoretically unlimited lifespan.  It has no moving parts, no consumables, and is housed in a compact optical cell. The sensor responds to CO2 only.
The electrochemical O2 sensor life is typically 4-5 years, unlike other analyzers with an electrochemical sensor that last 1-2 years. When required, replacement is easy and inexpensive.  Both sensors are unaffected by high levels of background gases such as nitrogen.

WARRANTY STATEMENT

The Model Q42 is backed up with a two-year warranty, twice the industry standard.
Our service team responds quickly to the repair needs of our customers, and repairs and calibrations are conducted in our advanced facility in Massachusetts.


Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 175
Carbon Dioxide Sensor Type Solid-state Infrared
CO2 Minimum Detection Limit 0.1% (0-50% or 0-100% range) or 0.01% (0-10% or 0-20% range)
Accuracy - Carbon Dioxide ± 1% of reading, or ± 0.1% CO2 (whichever is greater)
CO2 Calibration Controls Digital Keypad
CO2 Calibration Frequency Every 12 months; calibration gas recommended.
Oxygen Range 0.00 to 100%
Oxygen Sensitivity 0.01%
Expected Lifetime (oxygen) 4-5 years
Analog Output 0-5V both channels
Resolution 0.01%
Accuracy +/- 1% of the reading or 0.1%, whichever is greater
Drift less than 0.4% per year
Oxygen Sensor Type Proprietary Electochemical
Response Time 20 seconds to T95
O2 Sensor Lifetime 4-5 Years
O2 Sensor Body Anodized aluminum (CO2) and ABS Resin (O2)
Sample Connection Swagelok
Sample Method Flow through (or internal sample pump optional)
Sample Pump Optional - Internal, draws ~5cc/sec
Pump Timing 2-20 seconds, continuous, or cycling on/off, programmable
Minimum Sample Required 15cc
Sampling Assembly Varies
Oxygen Calibration Controls Digital Keypad Adjustment
Instrument Calibration EasyCal calibration
Exhaust port Vents to air
Power Supply 100 to 240 VAC, internationally compatibile
Battery Operation Optional - internal shrink-wrapped NiMH battery pack
Input Voltage 100-240V, 50-60Hz
Battery Life 12-16 hour runtime
Measures: O2, CO2 O2, CO2
Form Factor Rackmount
Size 11W x 3H x 8D in (279W x 76H x 203D mm)
Weight 3.5 lbs (1.59 kg)
Warranty 2 years, parts and labor
Standards CE, RoHS
Included Consumables 10 Filters, Extra tubing, 50cc syringe, USB thumb drive
Included Documentation Owner’s manual, NIST traceable calibration certificate
Origin of Goods Our goods are manufactured in the U.S.A.
Print Datasheet
Q40 Series Data Sheet
Download

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type bool in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 350

Warning: Trying to access array offset on value of type null in /srv/users/quantekinstruments/apps/quantekinstruments/public/wp-content/themes/maxcanvas_child/inc/woocommerce-func.php on line 354
Algae ExperimentsBioreactorsCarbon Capture and StorageCarbon MitigationCell CultureControlled AtmosphereCosmeticsFermentationGas BlendingGas Purity TestingGlove BoxGreenhousesIncubatorInert gas systemsInline Process TestingNitrogen GenerationOffgas AnalysisOxygen generatorsPre MAP gas testingReflow ovensResearchSoil TestingWelding
  • Model Q42 Analyzer
  • Power Supply (international adapters as necessary)
  • 10 Liquid and Particulate blocking filters (P/N 9028)
  • 50 cc syringe
  • Spare tubing for connecting to Swagelok
  • USB thumb drive for downloading saved data points

Email us:  sales@quantekinstruments.com

Call us:  508-839-3940



———————RETURN INSTRUCTIONS————————

Returning instruments for repair or calibration is easy:

  • Ship to address below:



Quantek Instruments, Inc.

183 Magill Drive

Grafton, MA 01519

(508) 839-3940

ATTN:  Service



2)    No RMA# or other paperwork is needed.

3)    Please make sure that the analyzer is well protected.

4)  *Important* Always include a business card or contact information in the box.   We’ll typically evaluate and send estimates within 24-48 hours of receipt.  Lack of contact information may delay this process.
